Floor Hoists

FLEX-LIFT Collapsible Mobile Floor Hoist | Salsa 200 - Mobile Stand Up Hoist | Sonata 150 - Mobile Floor Hoist | Alto 200 - Mobile Floor Hoist

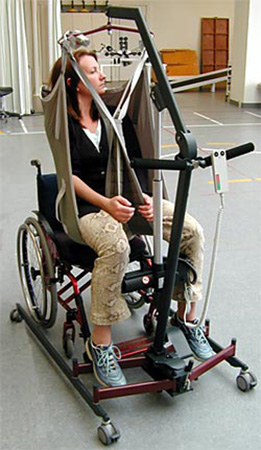

FLEX-LIFT Collapsible Mobile Floor Hoist

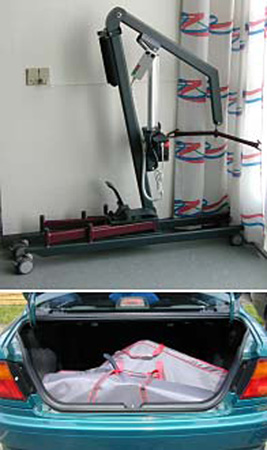

The FLEX-LIFT™ is a mobile floor hoist designed for travelling. It can be folded away in seconds, fits into a regular car boot.

•
•

Features:

• Lightweight metal frame
• Picks up from the floor with a lifting range of 116cm
• Frame folds for easy storing when not in use
• Assembled and disassembled without the use of tools
• Can be easily carried by one person
• Lockable castors
•  Easy carried in 2 bags – 13kg & 14kg

Specifications:

	Max Lifting weight:	130kg
	Total weight:	23.9kg
Flex Lift assembled:
	Height:	117 - 174cm
	Hoisting range:	116cm
	Yoke, lowest point:	46cm
	Yoke, highest point:	162cm
	Width, folded:	28cm
	Width, outside:	77.5cm
	Width, inside:	66cm
	Clearance, undercarriage:	5.5cm
Undercarriage:
	Length:	113cm
	Width folded:	22.5cm
	Weight in bag:	14.3cm
Hoisting Mast:
	Hoisting Mast length:	110cm
	Weight in bag:	13.9kg
Battery:
	24 volt (25-30 lifting cycles)
	Charges through hand control at external charging station
	Charging time 4-5 hours

Optional Accessory:

• Carry/storage bag

:: return to top

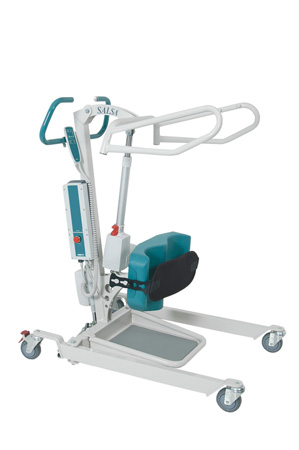

Salsa 200 - Mobile Stand Up Hoist

The SALSA 200 is designed as an active standing aid allowing a single carer to raise a patient into a comfortable secure standing position. The SALSA is ideal for transferring from bed to chair, or chair to commode. Allied to suit the SALSA, is a padded sling which allows superior access to remove clothing for toileting purposes. The SALSA is equally at home in an institutional or home environment.

•

Features:

• Castors are swivel style, 100mm (4") diameter castors on the front and rear, with foot operated step-on lockable brakes on the rear
• Handheld control on an extendable cord with separate push buttons for raising and lowering the hoist at a single speed, and opening and closing the base legs. There is a hook on the handpiece for mounting it to the hoist when not in use
• Battery mounted on the mast of the hoist, an alarm indicates low battery charge
•  Battery charging is achieved by connecting the lifter to an off-board battery charger and then to a power source
• Removable footrest with a slip resistant surface and a raised edge
• Knee pad is padded, upholstered, contoured, height adjustable and comes with a neoprene calf support strap with four points of key-hole attachments
• Emergency stop button
• Emergency lowering device

Specifications:

• SWL 200kg
• Base Length: 1050mm
• External Base Width: 655mm
• Internal Base Width Closed: 585mm
• Internal Base Width Open: 1035mm
• Base Width Adjustment: Electric
• Under Bed Clearance: 125mm
• Minimum Height Lift Arm: 825mm
• Maximum Height Lift Arm: 1670mm
• Machine Weight: 48.2kg
• Minimum Storage Height: 1200mm

Options:

• Velcro or buckle chest/stomach strap on sling (come in 2 sizes)

:: return to top

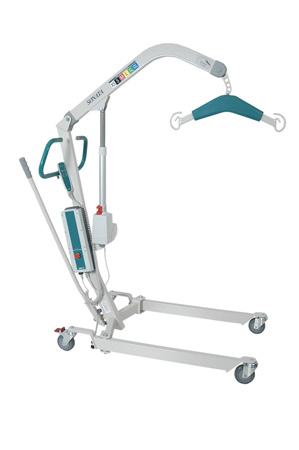

Sonata 150 - Mobile Floor Hoist

A compact mobile battery operated hoist which can be used to lift and transfer a person to and from a bed, chair and the floor. The hoist is compatible with a standard spreader bar or tilting /pivot frame. Leg opening can be operated both manually and electronically. Suitable for both domestic use and healthcare facilities.

•

Features:

• Epoxy coated steel frame
• Upright mast with an angled boom and a removable padded spreader bar
• The standard spreader bar has two points of attachment for a sling
• The hoist features a "Space Link" device, which increases maximum lifting height
• The U-shaped base has manual leg adjustment via a large lever with a contoured handle
• 3 positions for legs
• Dismantles into two pieces
• Hand held on an extendable cord with separate push buttons for raising and lowering the hoist at a single speed. There is a hook on the hand piece to enable it to be located on the hoist when not in use
• 12 month warranty

Specifications:

• SWL 150kg
• The hoist has an on-board battery charger. This requires the hoist to be stored with access to a power point
• Emergency stop button

Measurements:

Minimum height of spreader bar	340mm
Maximum height of spreader bar	1685mm
External base width (closed)	605mm
Internal width of base (closed)	530mm
Internal width of base (open)	1010mm
Base height (clearance required)	125mm
Length of base	1005mm
Overall weight	39kg

Options:

• Tilting/Pivot frame
• A range of slings can be selected to use with the hoist in sizes ranging from extra small to XXL.
• Slings available include: general purpose, general purpose with head support, tilt/pivot, amputee and paediatric slings

:: return to top

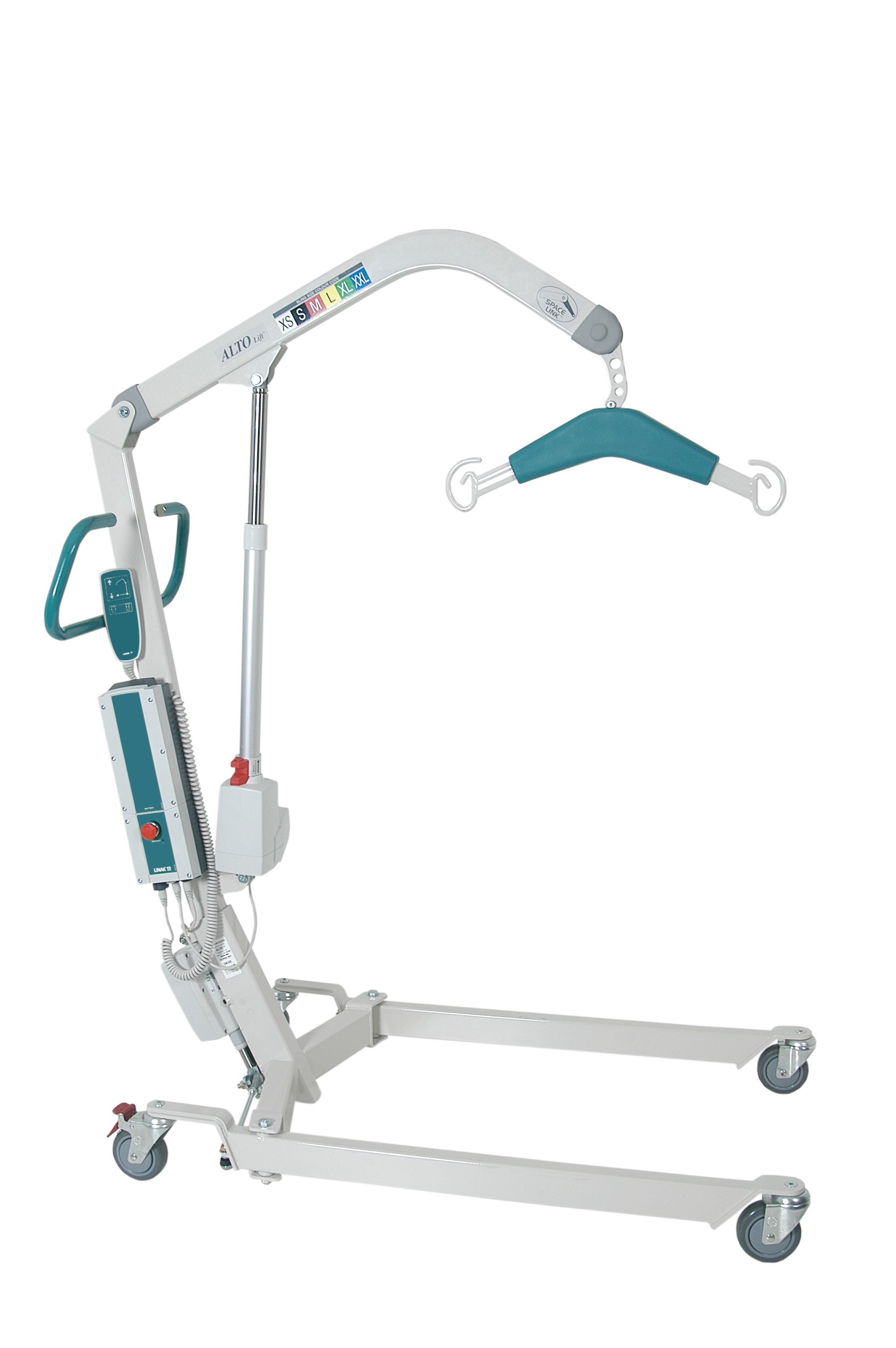

Alto 200 - Mobile Floor Hoist

The ALTO 200  is designed as a medium sized heavy duty mobile patient lifting hoist with a safe working load of 200kg with a compact ergonomic design. The ALTO provides superior patient lifting through the use of space link technology whilst remaining compact. The ALTO is the lifter of choice for institutional use or home use where a high capacity lift is required.



Features:

• Castors are swivel style, 100mm diameter castors on the front and back, with foot operated step on lockable brakes on the rear
• Handheld control on an extendable cord with seperate push buttons for raising and lowering the hoist at a single speed
• Battery mounted on the mast of the hoist, an alarm indicates low battery charge
• Battery charging is achieved by connecting the lifter to an off-board battery charger and then to a power source
• Emergency stop button
• Emergency lowering device
• Space Link- Increases maximum lifting height and enhances floor lift capability

Specifications:

•
  • SWL 200kg
• The hoist has an on-board battery charger. This requires the hoist to be stored with access to a power point
• Emergency stop button

Measurements:

• Base Length: 1150mm
• External Base Width: 645mm
• Internal Base Width Closed: 578mm
• Internal Base Width Open: 1130mm
• Base Width Adjustment: Electric
• Under Bed Clearance: 125mm
• Minimum Height Spreader Bar: 362mm
• Maximum Height Lift Arm: 1785mm
• Machine Weight: 43kg
• Minimum Storage Height: 1350mm
• Average lift range: 1060mm
• Under base height: 50mm
• Maximum Hoist Reach: 875mm
• Minimum Hoist Reach: 445mm

Options:

• Tilting/Pivot frame
• A range of slings can be selected to use with the hoist in sizes ranging from extra small to XXL.
• Weighing unit
• 4 Point yoke

:: return to top
